Aluminum Supporting Archway Metal Detector With A Controlling Mobile APP

Name: Aluminum Supporting Archway Metal Detector With A Controlling Mobile APP
Brand: Peace Guarder
Price: 1 USD

Aluminum Supporting Archway Metal Detector With A Controlling Mobile APP Manufactures

Brand Name : Peace Guarder

Model Number : PG6500

Certification : CE ROHS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Paypal, Western Union, Money Gram, Cash

Packaging Details : 2cartons/set

Price : Negotiable

Detection zone : 33zone

Sensitivity Level : 0-255

Language : English/Chinese/Customized

Warranty : 2years

Usage : Security Check

Keyword : Door Frame Metal Detector

Color : Black / Grey / Yellow

Power Supply : 110- 240V

Screen : 5.7" LCD screen

Certificate : CE ROHS

Contact Now

Pin Point 33zone Archway Metal Detector with LCD screen for bus station security check PG6500

New Functions

The walk through metal detector has a battery backup system. if there is no electricity , the gate will start to use the battery and run normally for at least 8hours.

Our metal detectors have a IP camera attached . when somebody passing throug the metal detector gate, it will alarm and take pictures or video . we can control the metal detector with a mobile APP . So that you can see the alarm info at any time anywhere.

We also add a power saving program in the system.if no action in 15mins, the door frame metal detector will enter sleep status.

Application

Airports and Seaports	Hotels and Casinos
Government Buildings	Power plants
Embassies	Research Sites
Police Facilities	Sports Stadiums
Courthouses	Public Transportation
Prisons and jails	Public Landmarks
Military Bases	Factories
Hospitals	Warehouses
Banks	Broadcast Studios
Financial Institutions	Museums
Colleges and Schools	Night Clubs

Key features

Archway Metal Detector
Detection Zones: 33zones
Adjustable Sensitivity: 0-255 ( 256 levels)
Waterproof(Optional)
With big LCD screen
Bilingual system
Optional network to PC
Directional counter
Pinpoint detection
Visible and audible alarming
With battery backup (Optional)
Easy assembly
Harmless to people

Features

The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
Multidimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
Can be connected to the PC for the communication .
With REMOTE Control

Specifications

Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Traffic Counter
Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
Synchronization
Dual channels and DSP circuitry allow several PG6500's to operate simultaneously in close proximity to one another.
Interference Suppression
Special DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
Alarms
Audible tone and volume adjustable. Bright LED visual alarm.
Target Pinpointing Lights
33 distinct zones are displayed with 2 independent columns of LED's located on exit side of PG6500.
Pacing Lights
International symbols
Warranty
Limited 24 months

Technical Parameters
Power Supply	220V/AC
Power	<15W
External Dimension	2200mm(H)820mm(W)550mm(D)
Passageway Dimension	2000mm(H)700mm(W)550mm(D)
Work environment	-20°C- +70°C
Standard	GB15210-2003<WALK THROUGH METAL DETECTOR>

Standard configuration
Main Case	ONE
Left Probe	ONE
Right Probe	ONE
Power Line	ONE
Screws	Eight
Instruction	ONE (Including one Certificate of Quality & Guarantee Repair List)

Packing
Main Case	0.755m0.485m0.255m (Carton)
Probe	2.37m0.68m0.22m(Carton)
Total Volume	0.38CBM
G.W.	70kg (Approx.)

Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector

Aluminum Supporting Archway Metal Detector With A Controlling Mobile APP

Product Tags:

multi zone door frame metal detector

metal detector scanner

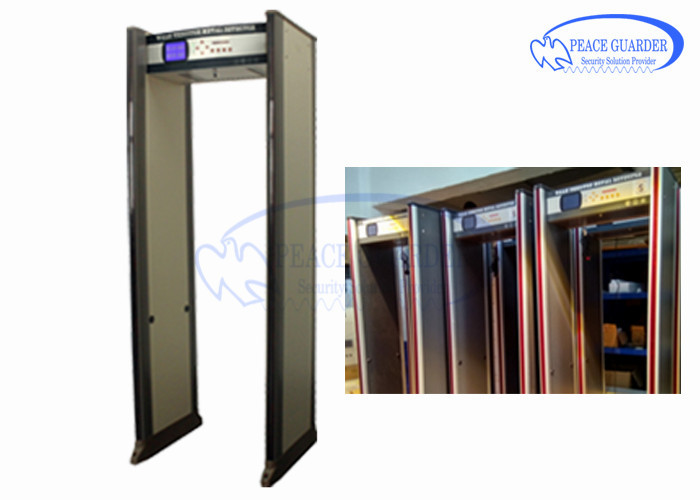

Aluminum Supporting Archway Metal Detector With A Controlling Mobile APP Images
